Instructions & Care - Drip Tray for the La Marzocco Linea Micra

Thank you very much for your purchase and interest in our products. With this overview, we would like to give you some guidance on how to use and clean the newest addition(s) to your espresso bar!

View Product

About the product

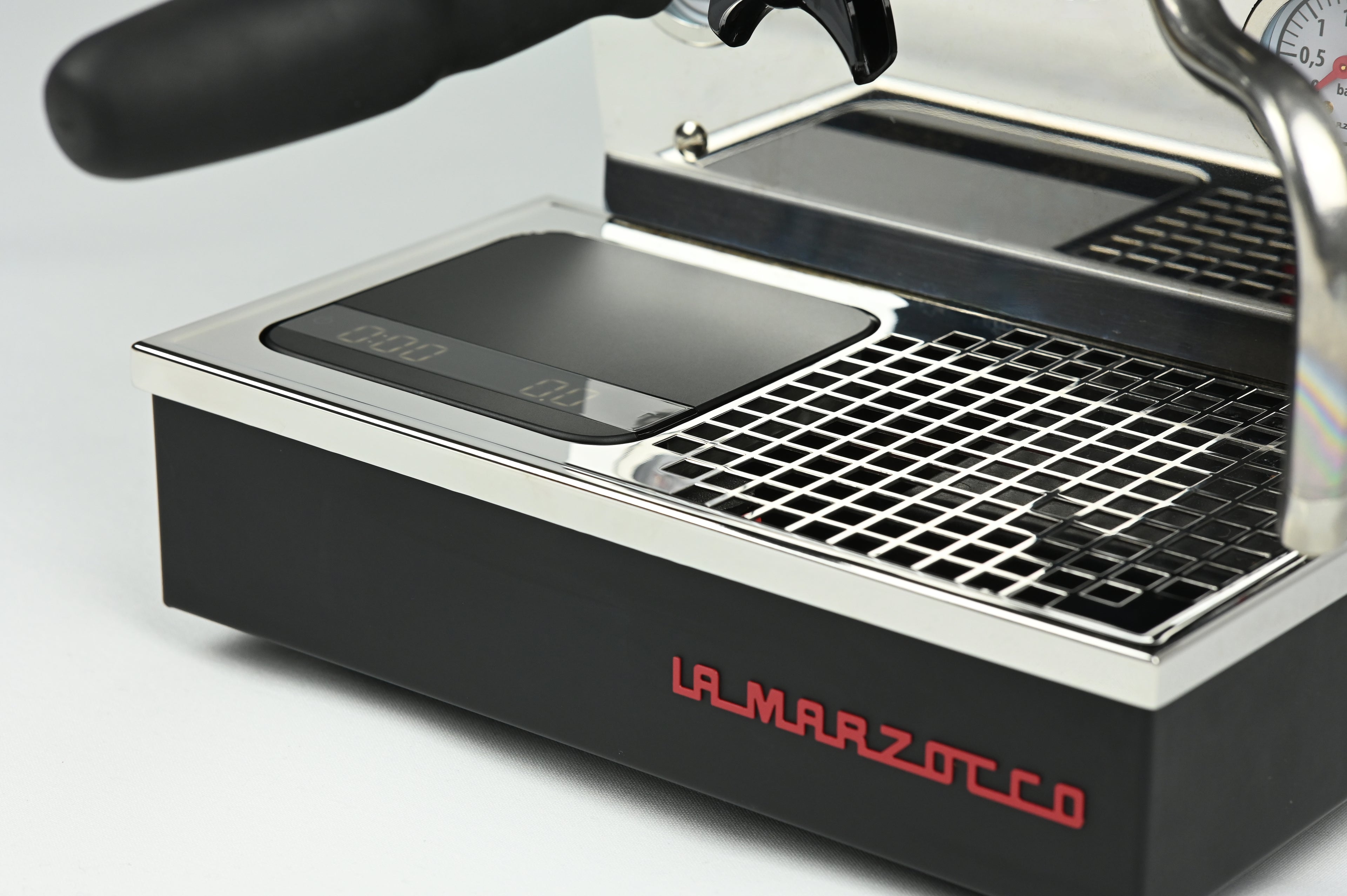

The Custom Drip Tray is designed specifically for the La Marzocco Linea Micra, enhancing both aesthetics and functionality. To use the drip tray effectively, ensure it is positioned securely beneath the espresso machine's group head. This will catch any excess water or coffee drips, preventing mess and maintaining a clean workspace.

Cleaning & Care

For cleaning, remove the drip tray from its position and rinse it under warm water. For stubborn stains or coffee residue, a mild detergent can be used. Avoid abrasive cleaners or scrubbers, as they may scratch the delicate surface. For details regarding the cleaning of your machine, we recommend checking out our related blogpost.

Installation Instructions

For a detailed guide, please follow the steps shown in the pictures below.

When positioning the scale, ensure it is centered on the scale mount with equal space on all sides. This is crucial for the scale to function correctly. If you ever need to remove the scale, simply use the provided suction cup from the package. Please remember to keep on hand on the scale after lifting it to prevent any accidental drops.

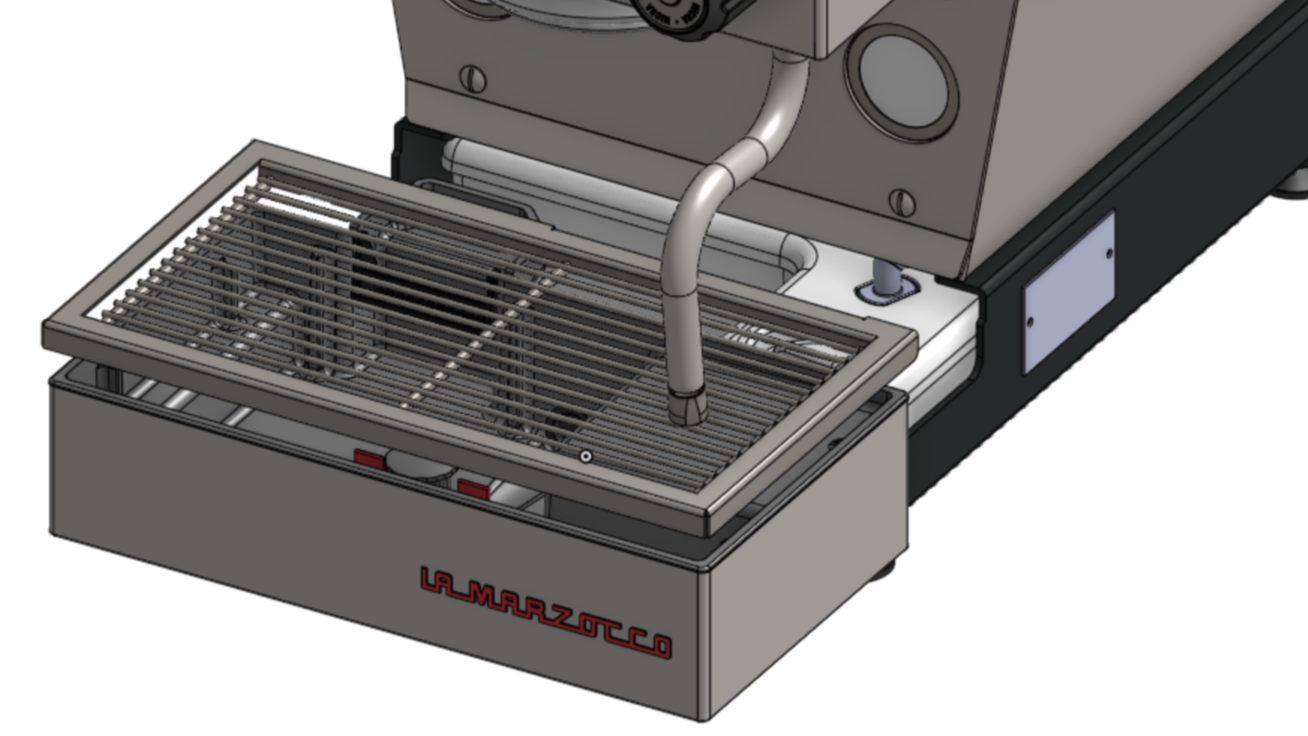

Step 1
Pull the drip tray forward and remove the grate.
Step 2
Rotate the cap 90 degrees and lift it upward.

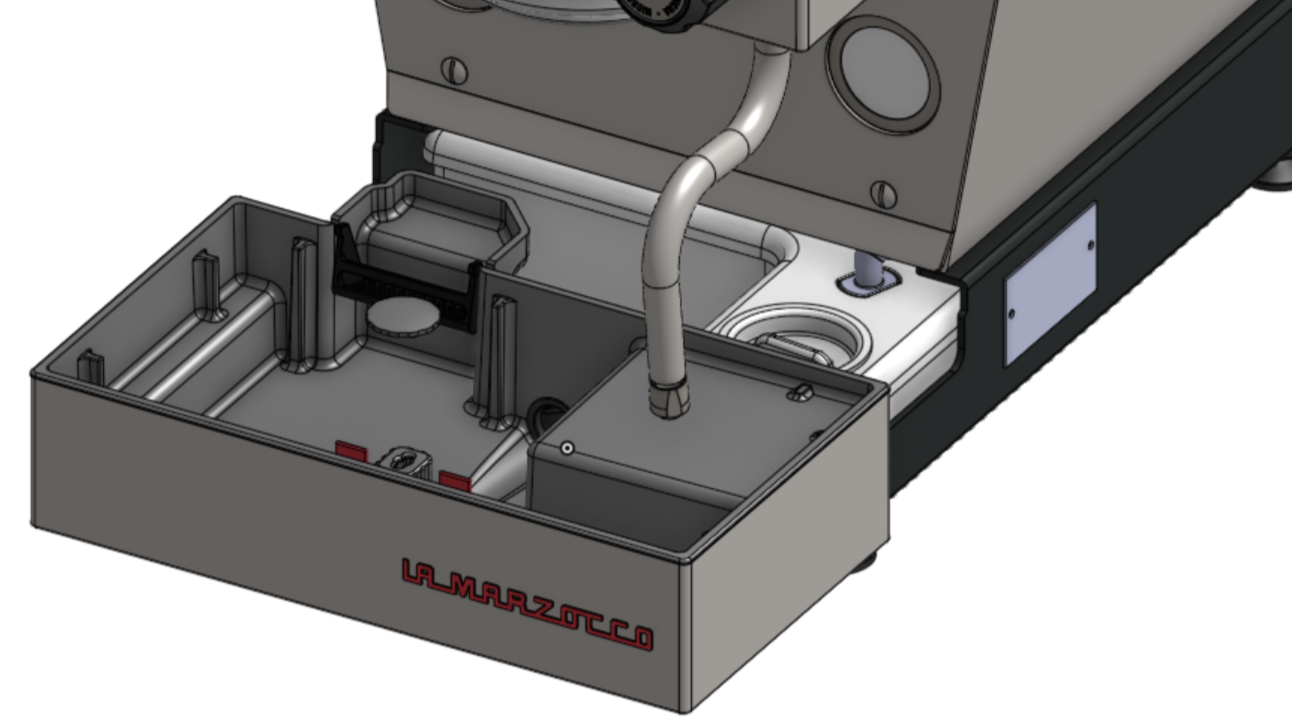

Step 3
Take out the stock full tray indicator.

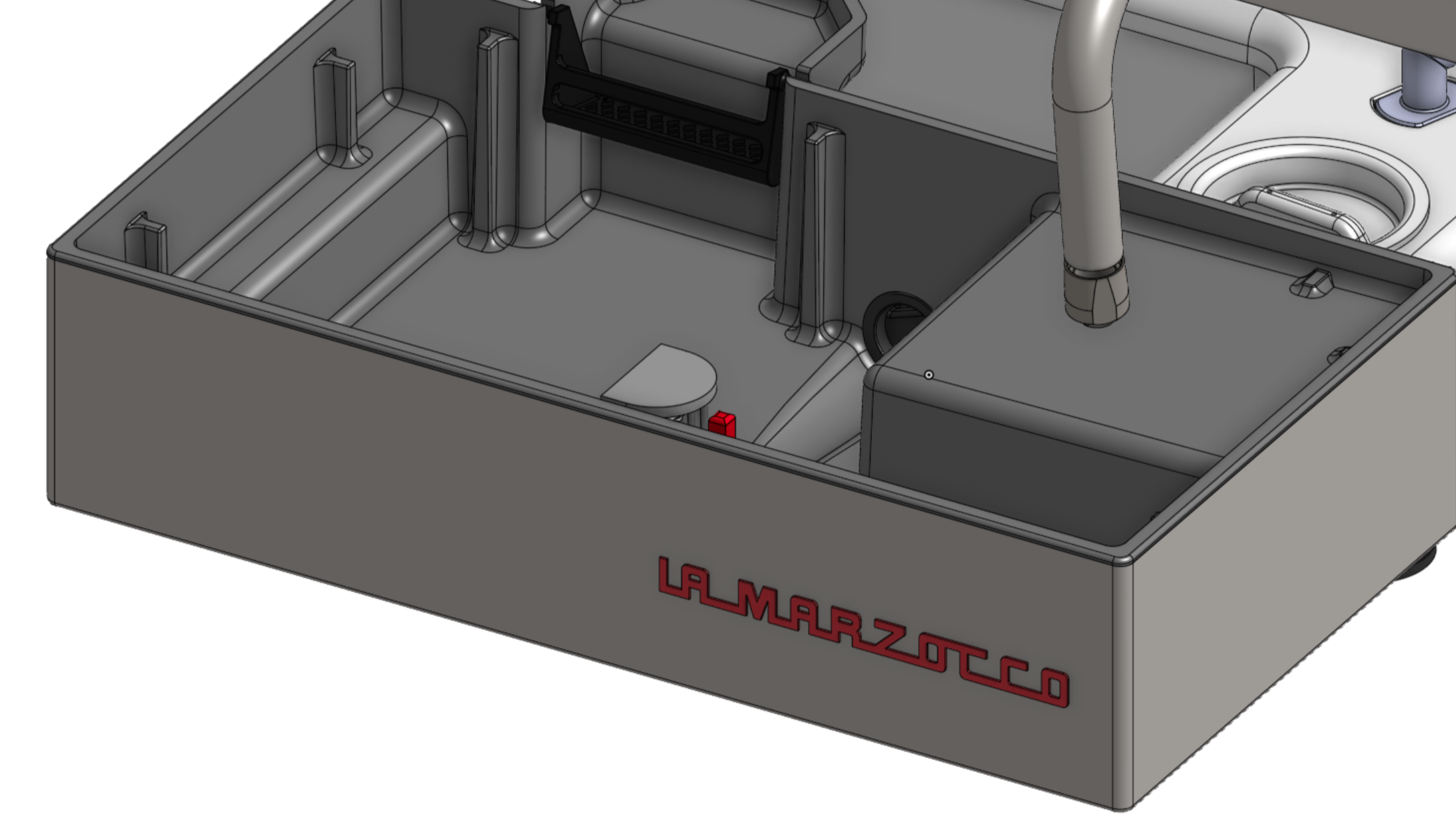

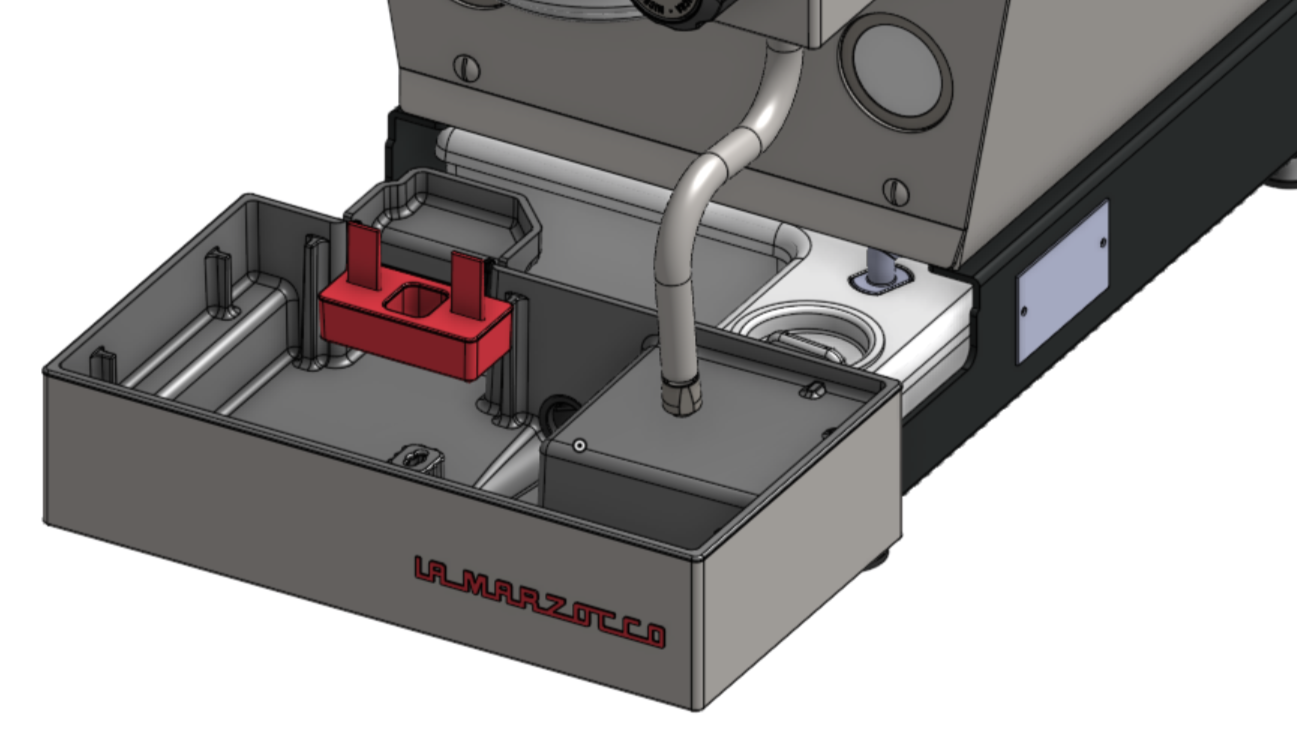

Step 4
Position the custom full tray indicator.
Step 5
Position the custom cap so that it’s flat side faces the front. Then, turn it 90 degrees to the right to secure it in place.

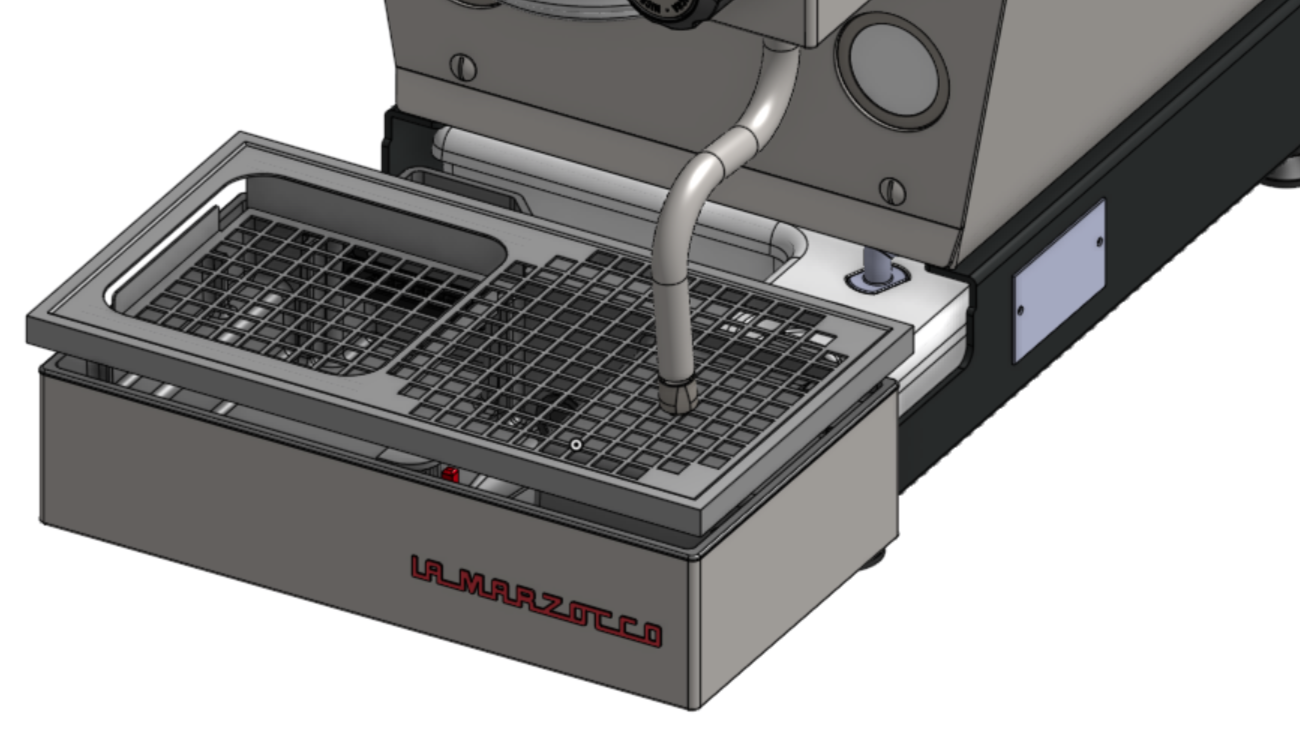

Step 6
Position the new drip tray and push it back in. Done!

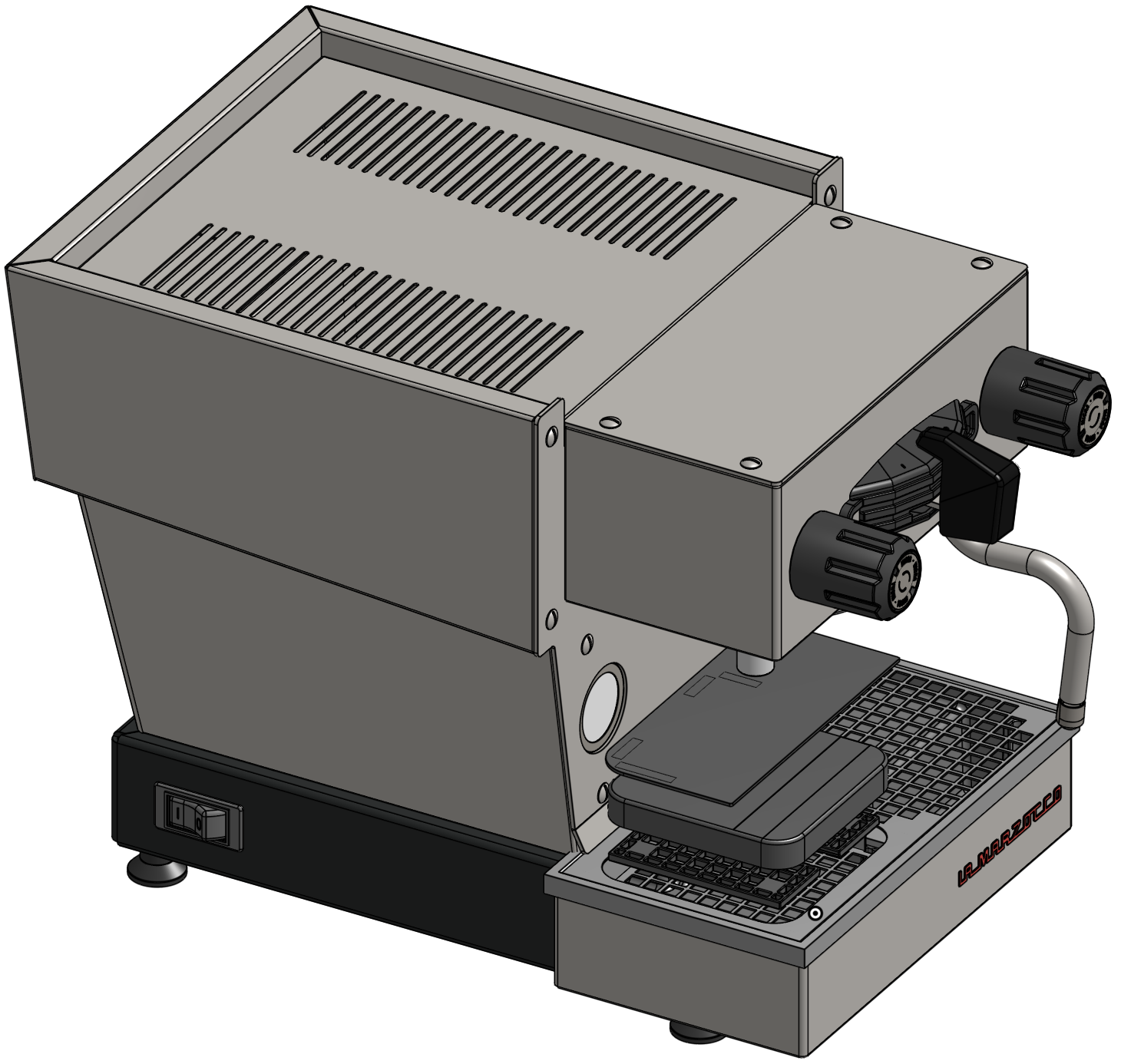

Optional - Bottomless Setup

Insert the grate for increased height into the drip tray.
Place your Acaia Lunar on top.
Position the weighing plate on your Acaia Lunar.

If the scale does not tare correctly, try moving it to the center of the cutout so it does not touch any of the metal. Please also make sure that no water has collected below the scale.
